GREENERD 56 TON HYD C FRAME PRESS, STOCK# 14472J
Have one to sell?
ConditionUsed
1 available

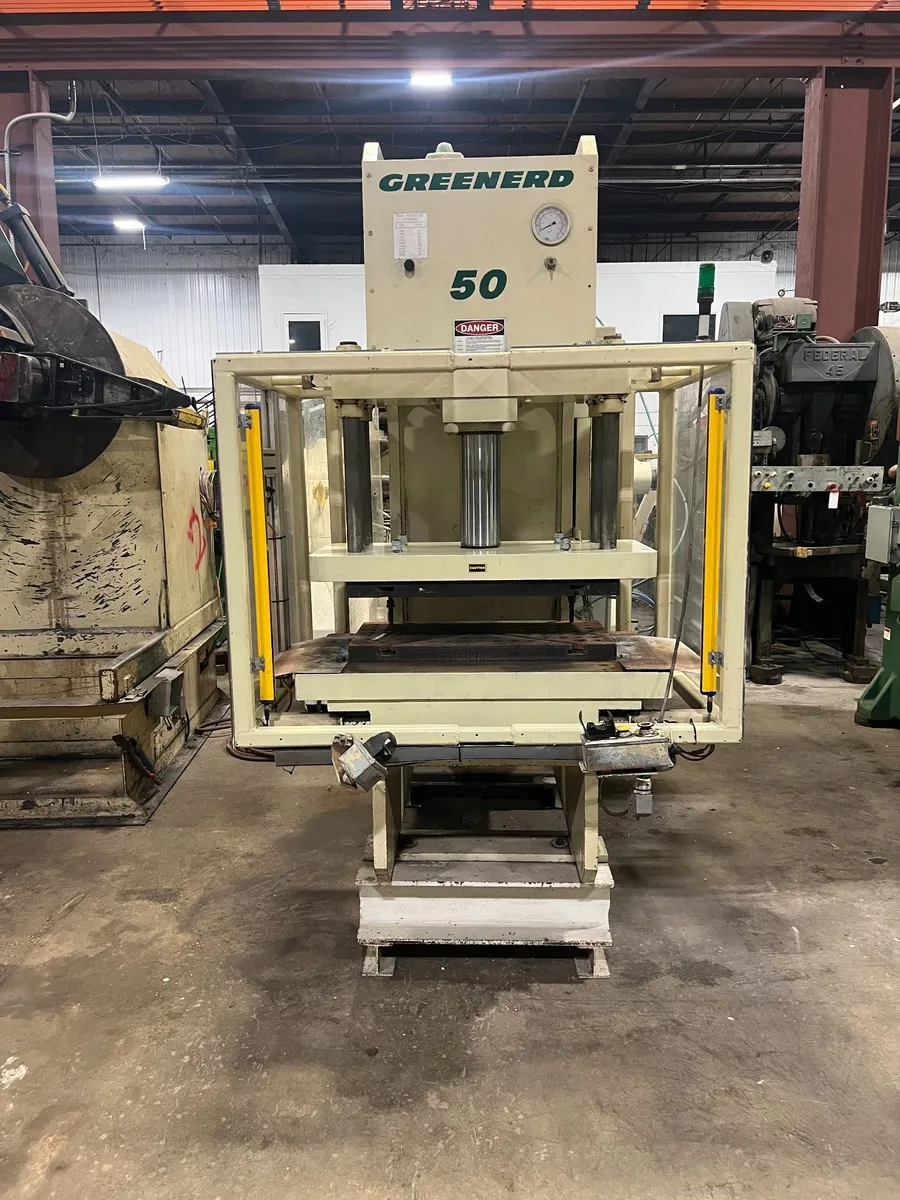

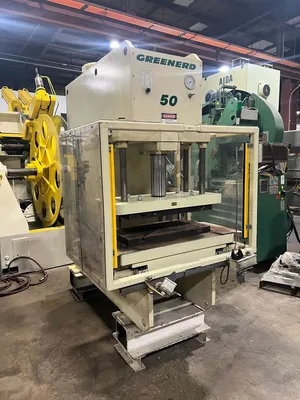

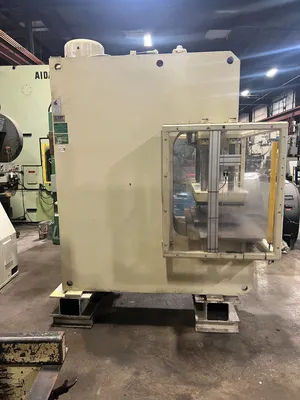

2007 Greenerd 56 Ton C Frame Hydraulic Press, Stock# 14472J. Features 2600 PSI, 30 hp motor, 460V 3-phase. Speeds: Advance 211, Press 108, Return 220 IPM. 18" daylight, 11" throat, 1"-12" stroke. Approx. weight 7,000 lbs. Ideal for industrial tasks.
Greenard 56 Ton Hydraulic C frame Press, STOCK# 14472J
S/N# 07T6728
MDL# HCA-50-18R
DATE OF MANUFACTURE: 2007
Tonnage: 56 at 2600 PSI
RAM Speeds in IPM (Inches Per Minute)
Rapid Advance 211
Pressing 108
Return 220
Voltage: 460 volts A.C. 3 PHASE
Motor: 30 hp
Daylight: 18 "
Throat: 11 "
Stroke: 1" - 12 "
Floor to table 36"
Bolster 42" x 24"
Ram Plate 40" x 17"
Cylinder Bore 7"
Ram Diameter 5"
OAD 90" FB x 58" LR x 98"T
Approx Weight 7,000 lbs
4 Post Guided
Reservoir Capacity : 120 U.S. gallons
