FEEDLEASE 4,000 LB X 24" X .160 COIL FEED LINE, STOCK# 14439T

FEEDLEASE 4,000 LBS X 24" X .160 COIL FEED LINE, STOCK# 14439T

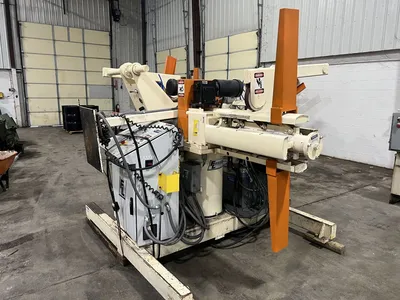

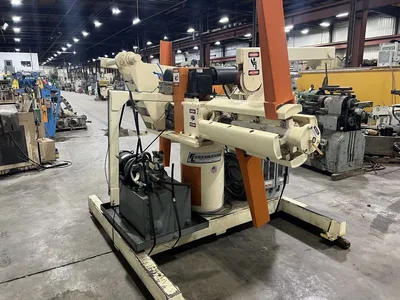

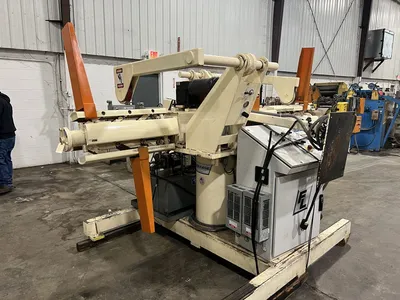

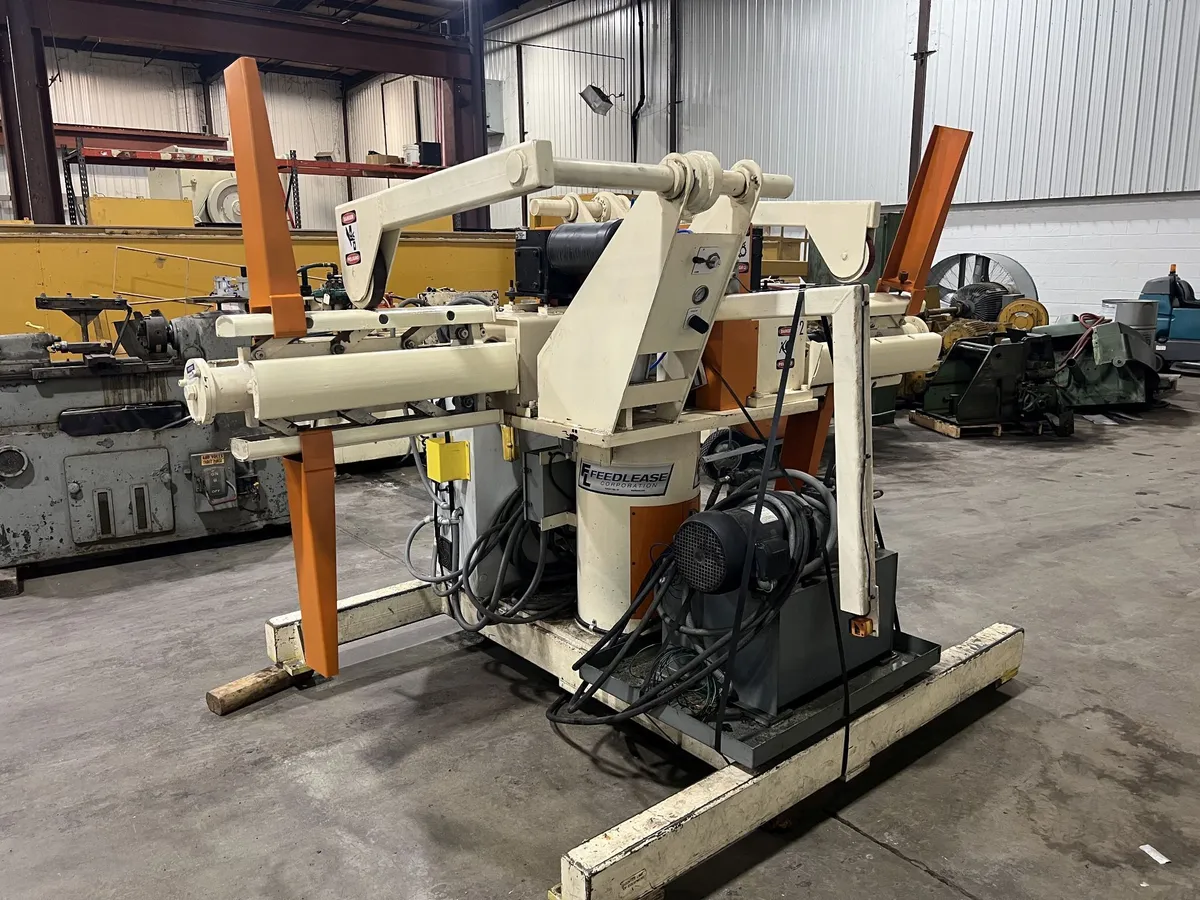

FEED-LEASE DOUBLE END AUTO-CENTERING REEL / UNCOILER:
S/N# 5763/4
WEIGHT CAPACITY .......... 4000 LBS PER SIDE
WIDTH CAPACITY ........... 24"
DIAMETER OF COIL ......... 72"
INSIDE DIAMETER .......... 16" TO 21"
2 HP V/S DRIVE
HYD EXPANSION
HYD HOLD DOWN ARM

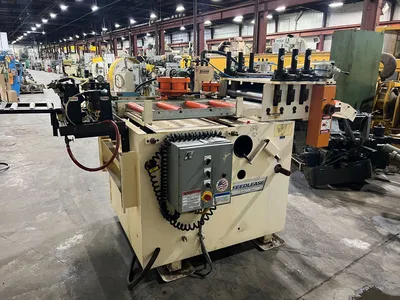

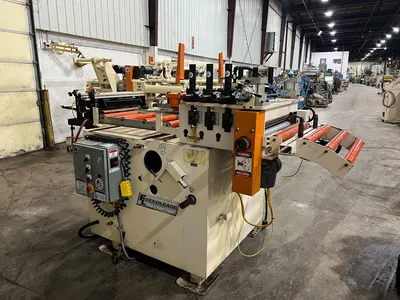

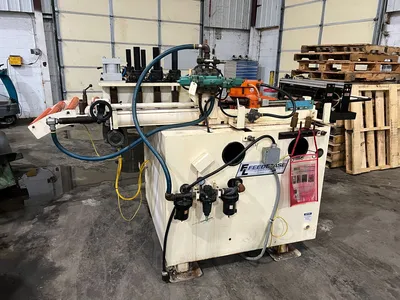

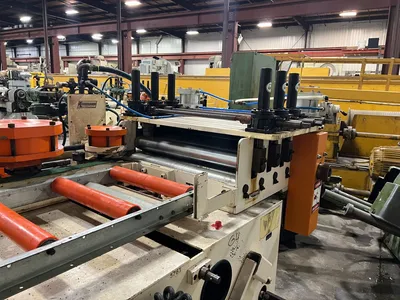

FEED-LEASE STRAIGHTENER & FEEDER:
SERIAL ................... 5763/2
MODEL .................... FL-4-24X18
COIL WIDTH CAPACITY ...... 24"
THICKNESS CAPACITY ....... .030" TO .160"
THICKNESS AT MIN WIDTH ... 6" X .209"
NUMBER OF ROLLS .......... 7 (3 OVER 4)
GRIPPER FEED ............. YES, PNEUMATIC
FEED LENGTH .............. 18" MAX
ROLL ADJUSTMENT
ENTRY GUIDE ROLLERS POWERED
CONTROLS
ADJUSTABLE CABINET
