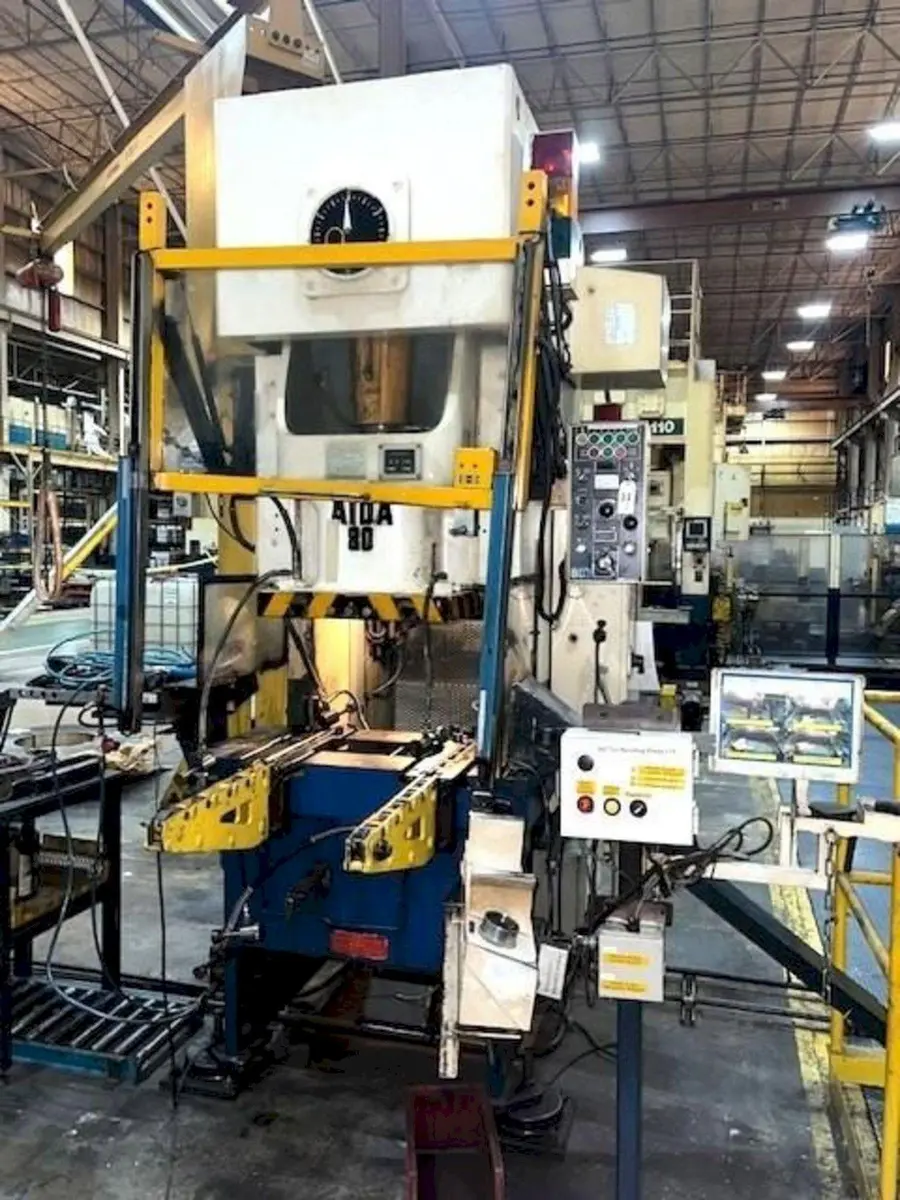

AIDA 88 TON GAP FRAME PRESS, S/N 10208-9061, STOCK# 14431J

Have one to sell?

931-381-1900

SALES@TIMCOINC.COM

ConditionUsed

Quantity

1 available

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (1)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (2)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (3)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (4)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (5)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (6)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (7)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc. (8)

AIDA 88 TON GAP FRAME PRESS Gap Frame, Single Crank Presses | Timco, Inc.

Have one to sell?

Overview

Type:

Gap Frame, Single Crank Presses

Manufacturer:

AIDA

Model:

88 TON GAP FRAME PRESS

Stock #:

14431J

Status:

For Sale

Serial #:

10208-9061

Description

AIDA 88 TON GAP FRAME PRESS, used, offers 88T capacity and features a 3.93" stroke, variable speed up to 110 SPM, 10 HP motor, and advanced safety with light curtains. Comes with vibration mounts and hydraulic die lift. Compact and efficient solution.

Specifications

ImperialMetric

Tonnage	88 T	79.832 t

AIDA 88 TON GAP FRAME PRESS, S/N 10208-9061, STOCK# 14431J
3.93" Stroke (100mm)
11.8" Shut Height Over Bolster (300mm)
3.14" Adjustment (80mm)
55 - 110 SPM Variable Speed
37.4" x 18.1" Bolster Area (950mm x 460mm)
21.26" x 18.1" Slide Area (540mm x 460mm)
10 HP Main Motor (7.5kw)
Light Curtains
Vibration Mounts
Pascal Hydraulic Die lift & Clamping
54" x 68" x 109" T APROX.
18,000 LBS APROX.

AIDA 88 TON GAP FRAME PRESS, S/N 10208-9061, STOCK# 14431J
