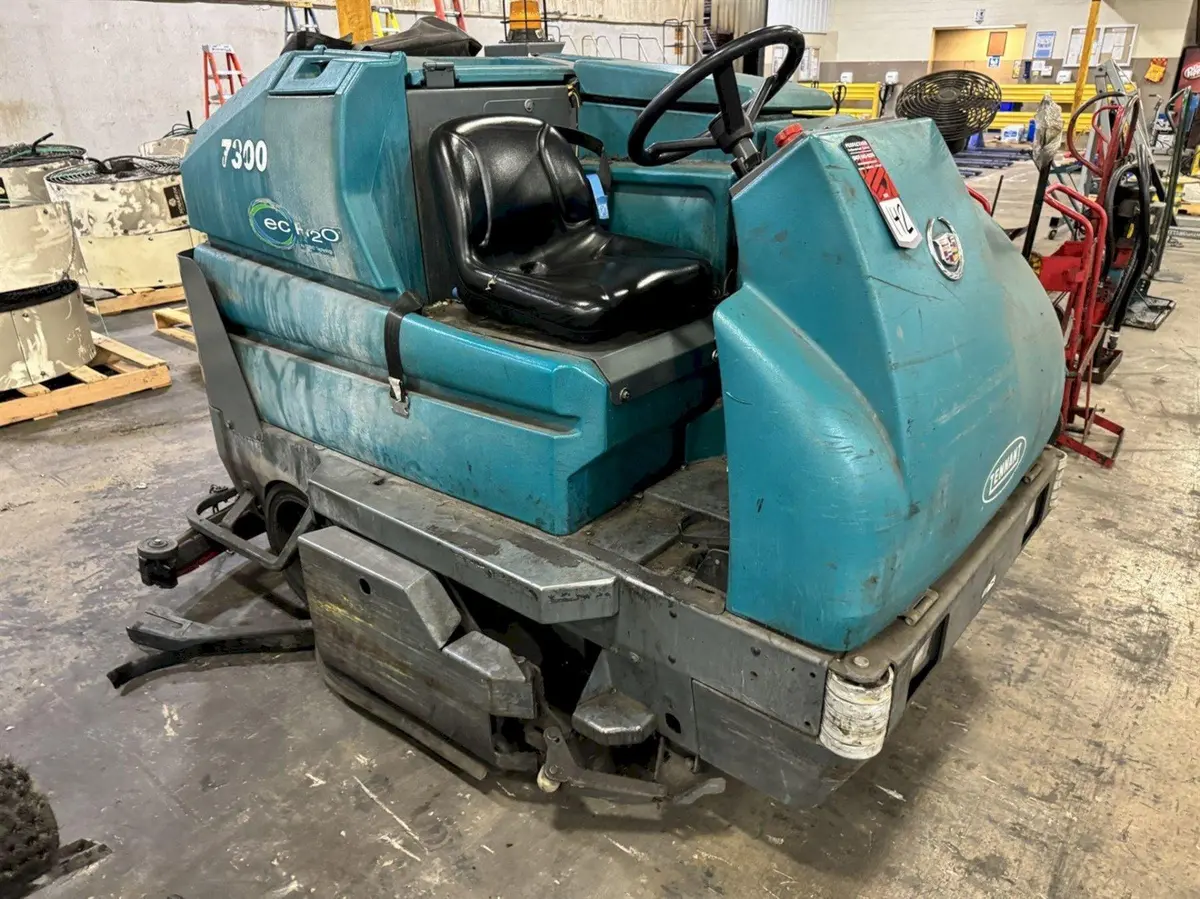

TENNANT FLOOR SCRUBBER MODEL 7300, STOCK# 14376J

TENNANT FLOOR SCRUBBER, STOCK# 14376J
MaxPro™ 1000 scrub head (standard) 40-inch
Edge scrub reach 5-inch
Solution tank 57 gallon
Disc scrub head
Speed 320 rpm
Down pressure weight (variable to) 500 lb
Brush diameter (2) MP1000 20-inch
Brush diameter (3) MP1200 16-inch
Brush motor (2) MP1000 1 hp
Brush motor (2) MP1200 1 hp
Cylindrical scrub head
Speed 500 rpm
Down pressure weight (variable to) 500 lb
Brush diameter (2) 9-inch
Brush motor (2) 1.5 hp
Recovery System
Recovery tank 74 gallon
Demisting chamber 17 gallon
Vacuum fan speed 14,000 rpm
Vacuum water lift 65-inch
Vacuum fans (2) 0.85 hp
Propelling System
Propel speed forward (variable to) 5.5 mph
Propel speed reverse (variable to) 3.0 mph
Propel motor 4.6 hp
Gradeability
Transport at gross weight 8 deg/14%
Working (scrubbing) 6 deg/10.5%
Machine Dimensions
Length 84-inch
Width 45-inch
Rear squeegee MP1000 51-inch
Rear squeegee MP1200 59.5-inch
Height 57-inch
With overhead guard 81.5-inch
Weight 1980 lb
With standard battery 3430 lb
Minimum aisle turn 92-inch
FOB: COLUMBIA Tennessee
