MONARCH EE TOOLROOM LATHE, STOCK# 14092T
Have one to sell?
ConditionUsed
1 available

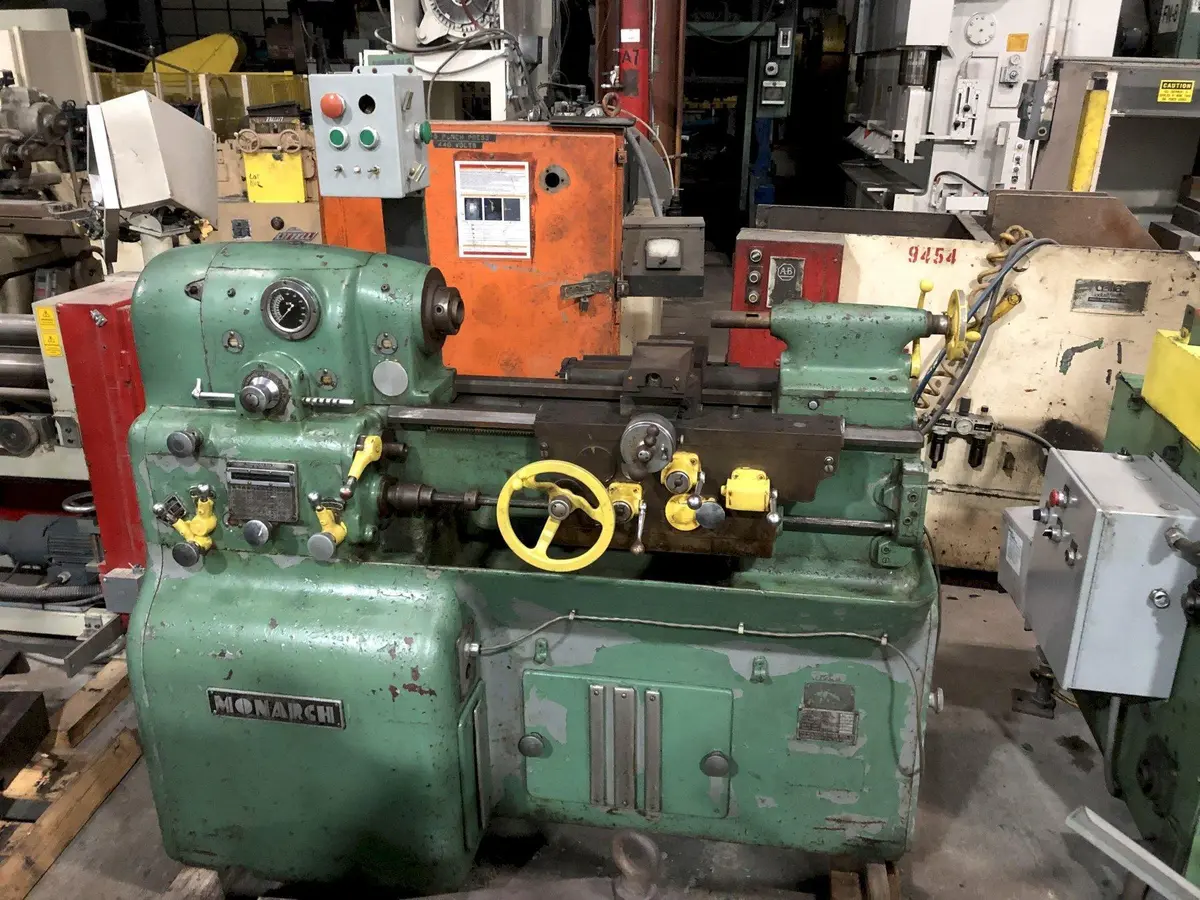

MONARCH EE 12-1/2" X 20" LATHE, STOCK# 14092T
Swing Over Bed 12 1/2"
Swing Over Cross Slide 7 1/4"
Distance Between Centers 20"
Spindle Speeds (Variable) 40- 4,000 RPM
Spindle Nose D1- 3
Hole Thru Spindle 1 13/32"
Threads (Inch) (60) 3- 184 TPI
Feeds (50) 0.0005"- 0.016"
Cross Slide Travel 8"
Tailstock Quill Taper #2MT
Tailstock Quill Travel 3 1/2"
Horsepower 3 H.P
Dimensions (L x D x H) 63" x 35" x 48"
Weight 3,000 LBS.
EQUIPPED WITH
Taper Attachment
Tailstock
****** LEADSCREW AND HANDLE OF COMPOUND REST IS MISSING
