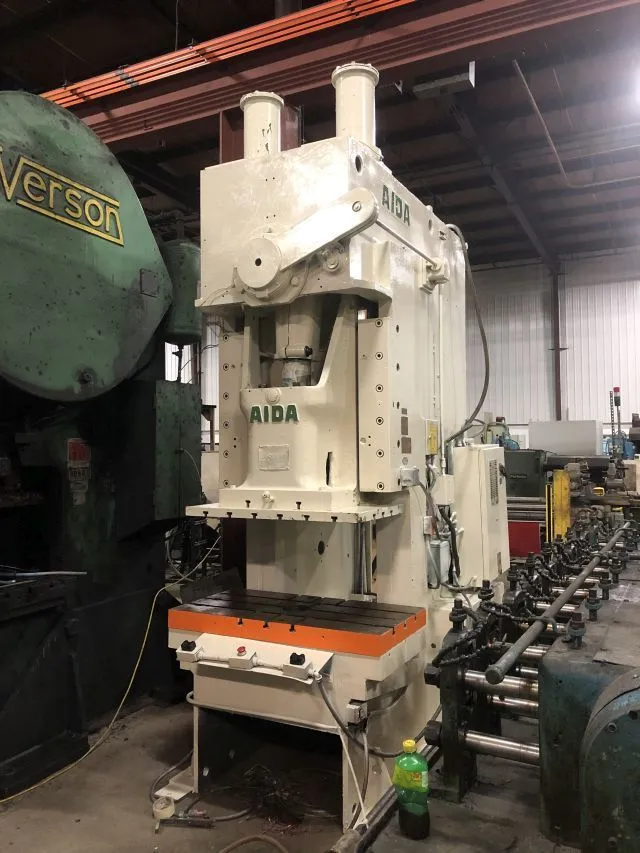

AIDA 165 TON OBI PUNCH PRESS, STOCK# 13928T
Have one to sell?
ConditionUsed
1 available
AIDA 165 TON OBI punch press in used condition, model C1-15(2). Features 165T, 7.8” stroke, 15.7” shut height, and a 48.8"x24.8" bed. Equipped with air clutch & brake, air counterbalances, and one-shot lube. Approx. weight 34,000 lbs.
AIDA 165 TON OBI PUNCH PRESS, STOCK# 13928T
MODEL C1-15(2)
STROKE 7.8
SLIDE ADJ 3.3
SHUT HEIGHT 15.7"
AREA OF BED 48.8"LR X 24.8"FB
BOLSTER THICKNESS 3.5
AREA OF SLIDE 26.3"LR X 19.6"FB
OPENING THRU BACK 26.5"
FLOOR TO TOP OF BED 35.5"
SPM APPROX 45
EQUIPPED WITH:
AIR CLUTCH & BRAKE
AIR COUNTERBALANCES
BACK GEARED TYPE
ONE SHOT LUBE
KNOCKOUT SLOT IN SLIDE
RAM PLATE 40"LR X 23.5"FB X 2"T
APPROX WEIGHT 34,000 LBS
NEW PRESS CONTOL LEAD TIME 2
